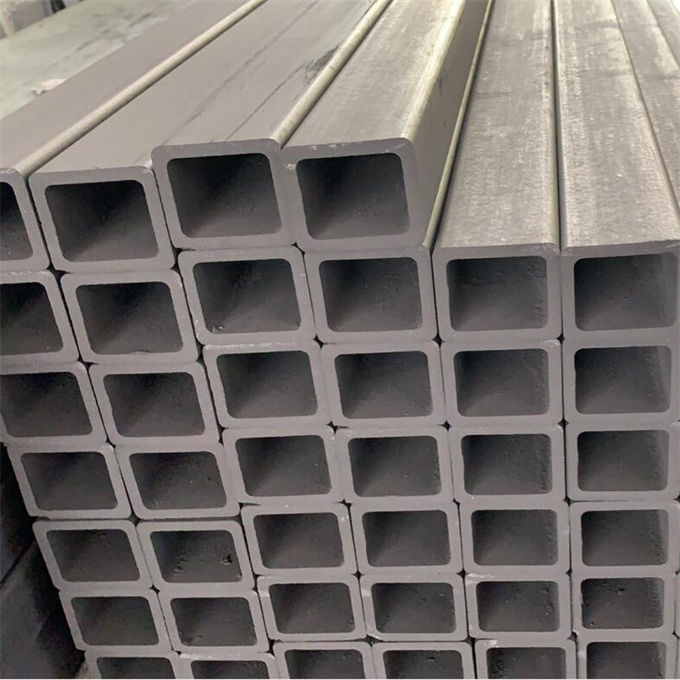

SiSiC Beam

Introduction：
The material of siliconized silicon carbide has series of basic superiority and characteristic.Many products can be made from it such as beams,rollers,cooling air pipes,thermal couple protection tubes,temperature-measuring tubes,sealing parts,and special shaped parts.

Features:
1.High strength.
2.Extreme hardness.
3.Wear resistance.
4.Good corrosion resistance.
5.Good thermal shock resistance.
6.High thermal conductivity,.
7.Low coefficient of thermal expansion.

Application:
SiSiC Beams are widely used as kiln furniture for different high temperature industries.

Technical Data:

Item	Unit	Data
Max Temperature of Application	℃	1380
Density	g/cm3	>3.02
Open Porosity	%	<0.1
Bending Strength	Mpa	250(20℃)
	MPa	280(1200℃)
Modulus of Elasticity	Gpa	330(20℃)
	GPa	300(1200℃)
Thermal Conductivity	W/m.k	45(1200℃)
Coefficient of Thermal Expansion	K-1x10-6	4.5
Mohs Scale of Hardness	/	9.2
Acid Alkaline-proof	/	Excellent
